Adding foreshortened dimensions has been simplified over the years to work with every type of drawing view, including section and detail views.

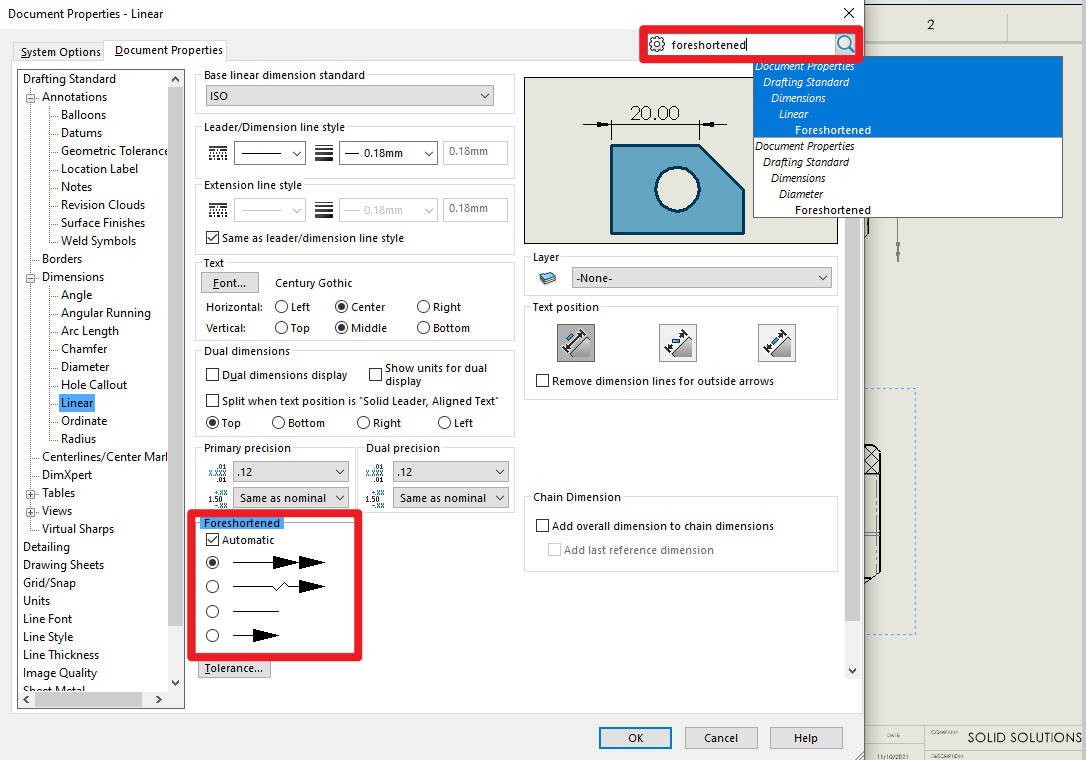

If they are not automatically added when dimensioning detail or cropped views, check under the Options cog and simply search for them in the top left of the dialog.
Here you can customise foreshortened dimensions to your drafting standard.
Ensure ‘Automatic’ is selected if you want SOLIDWORKS to detect when a dimension should be foreshortened.
As these are document properties, they are unique to the drawing file. Any permanent changes should be saved to a drawing template to save you time in the future.
To foreshorten an existing dimension, right click on the dimension and, under Display Options, choose ‘Foreshorten’ from the menu.
